Dataset containing the initial number of susceptible and infected cattle across 1,600 herds, for the environment-based transmission model. Provides realistic population structure for demonstrating SISe model simulations in a cattle disease epidemiology context.
Value
A data.frame with 1,600 rows (one per herd) and 2 columns:
- S
Number of susceptible cattle in the herd
- I
Number of infected cattle in the herd (all zero at start)
Details
This dataset represents initial disease states in a population of 1,600 cattle herds (nodes). Each row represents a single herd (node). The SISe model extends the SIS model with an environmental compartment for pathogen shedding, suitable for diseases transmitted through environmental contamination.
The data contains:
- S
Total susceptible cattle in the herd
- I
Total infected cattle (initialized to zero)
The herd size distribution reflects realistic heterogeneity observed in cattle populations, making it suitable for testing environmentally- mediated transmission dynamics where pathogen survival in the environment is important.
See also
SISe for creating SISe models with this initial
state and events_SISe for associated cattle movement
and demographic events
Examples
## For reproducibility, call the set.seed() function and specify the
## number of threads to use. To use all available threads, remove the
## set_num_threads() call.
set.seed(123)
set_num_threads(1)
## Create an 'SISe' model with 1600 cattle herds (nodes) and
## initialize it to run over 4*365 days. Add ten infected animals to
## the first herd. Define 'tspan' to record the state of the system at
## weekly time-points. Load scheduled events for the population of
## nodes with births, deaths and between-node movements of
## individuals.
u0 <- u0_SISe()
u0$I[1] <- 10
model <- SISe(u0 = u0,
tspan = seq(from = 1, to = 4*365, by = 7),
events = events_SISe(),
phi = 0,
upsilon = 1.8e-2,
gamma = 0.1,
alpha = 1,
beta_t1 = 1.0e-1,
beta_t2 = 1.0e-1,
beta_t3 = 1.25e-1,
beta_t4 = 1.25e-1,
end_t1 = 91,
end_t2 = 182,
end_t3 = 273,
end_t4 = 365,
epsilon = 0)

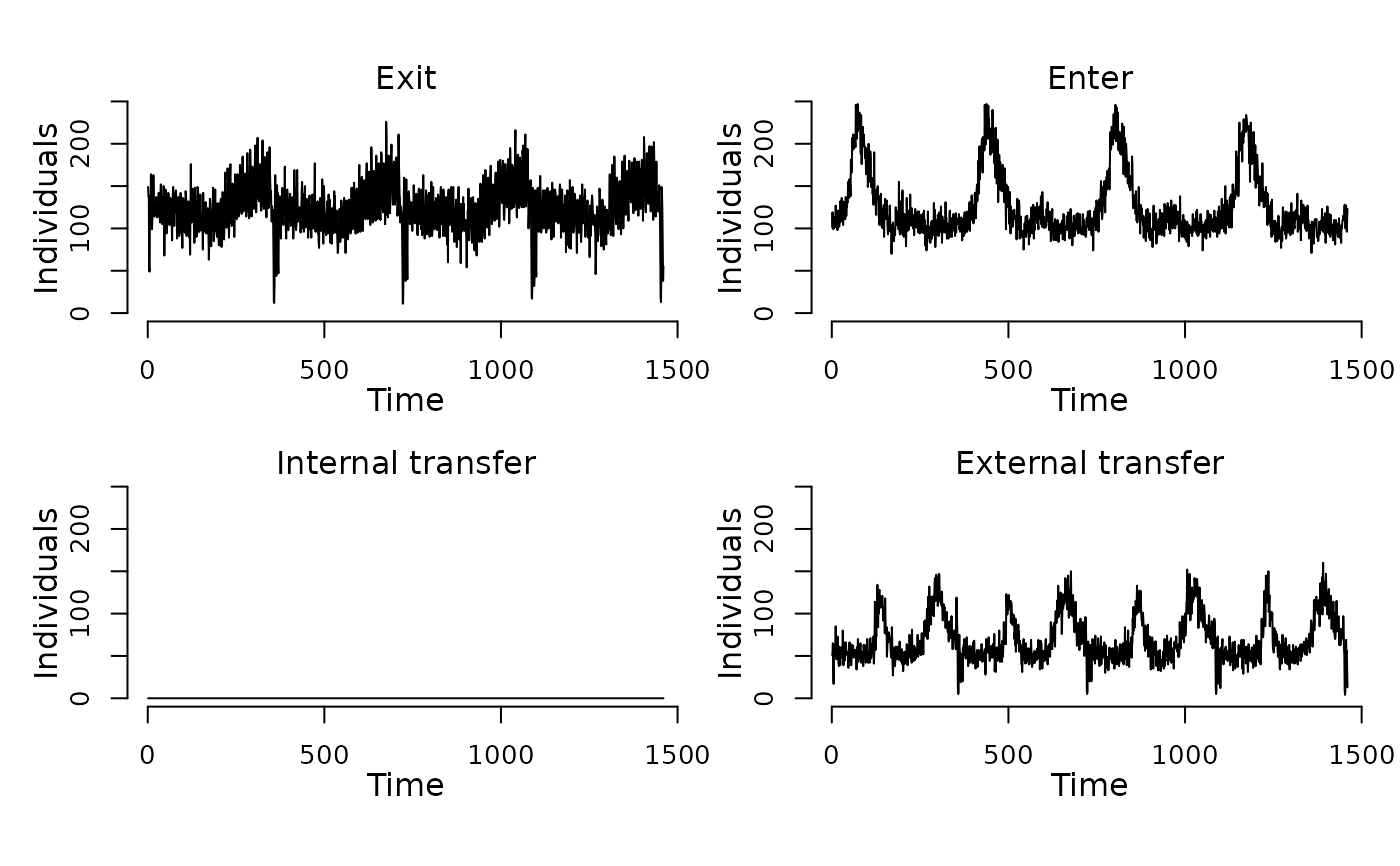

## Display the number of cattle affected by each event type per day.
plot(events(model))
## Run the model to generate a single stochastic trajectory.
result <- run(model)

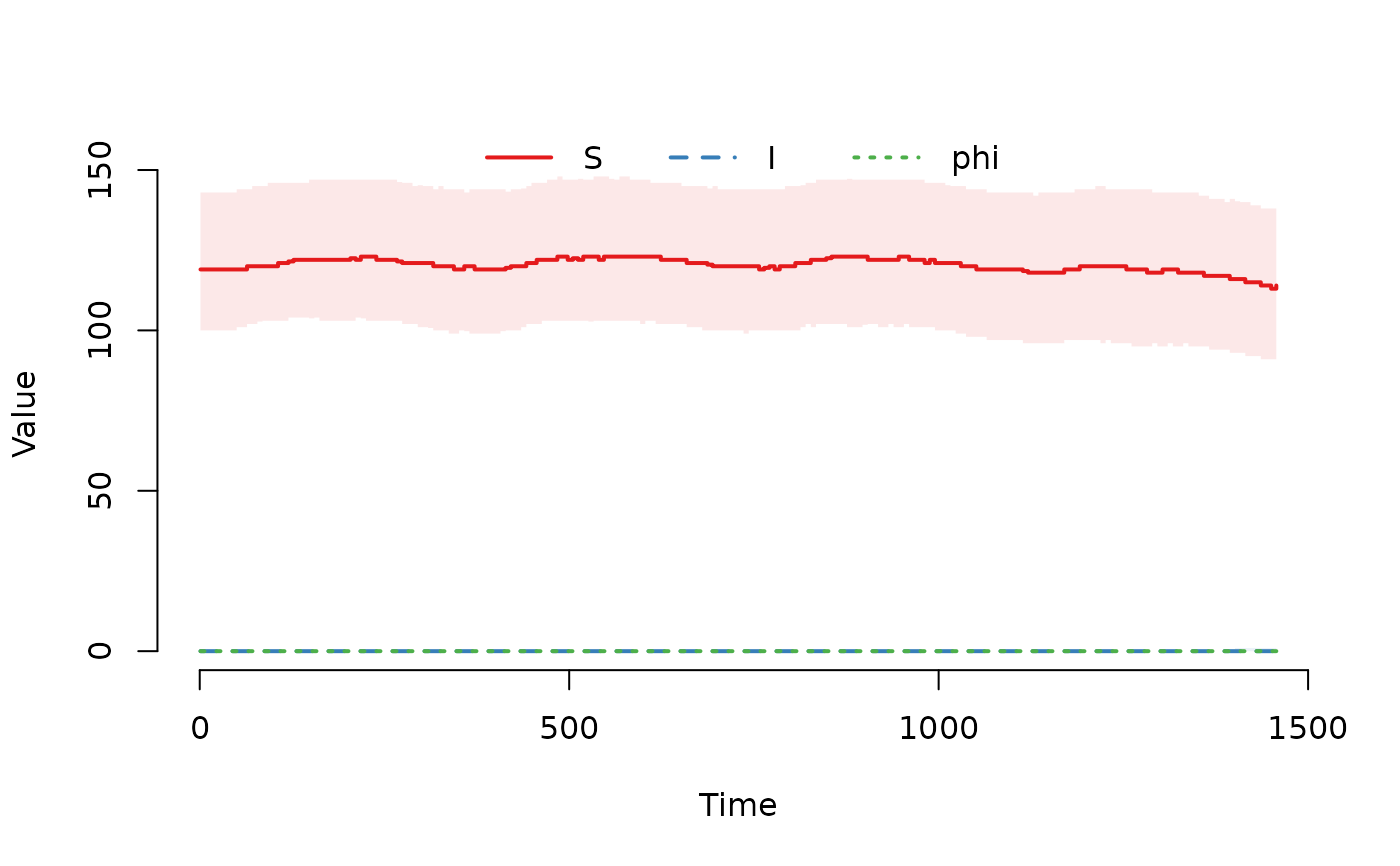

## Plot the median and interquartile range of the number of
## susceptible and infected individuals.
plot(result)

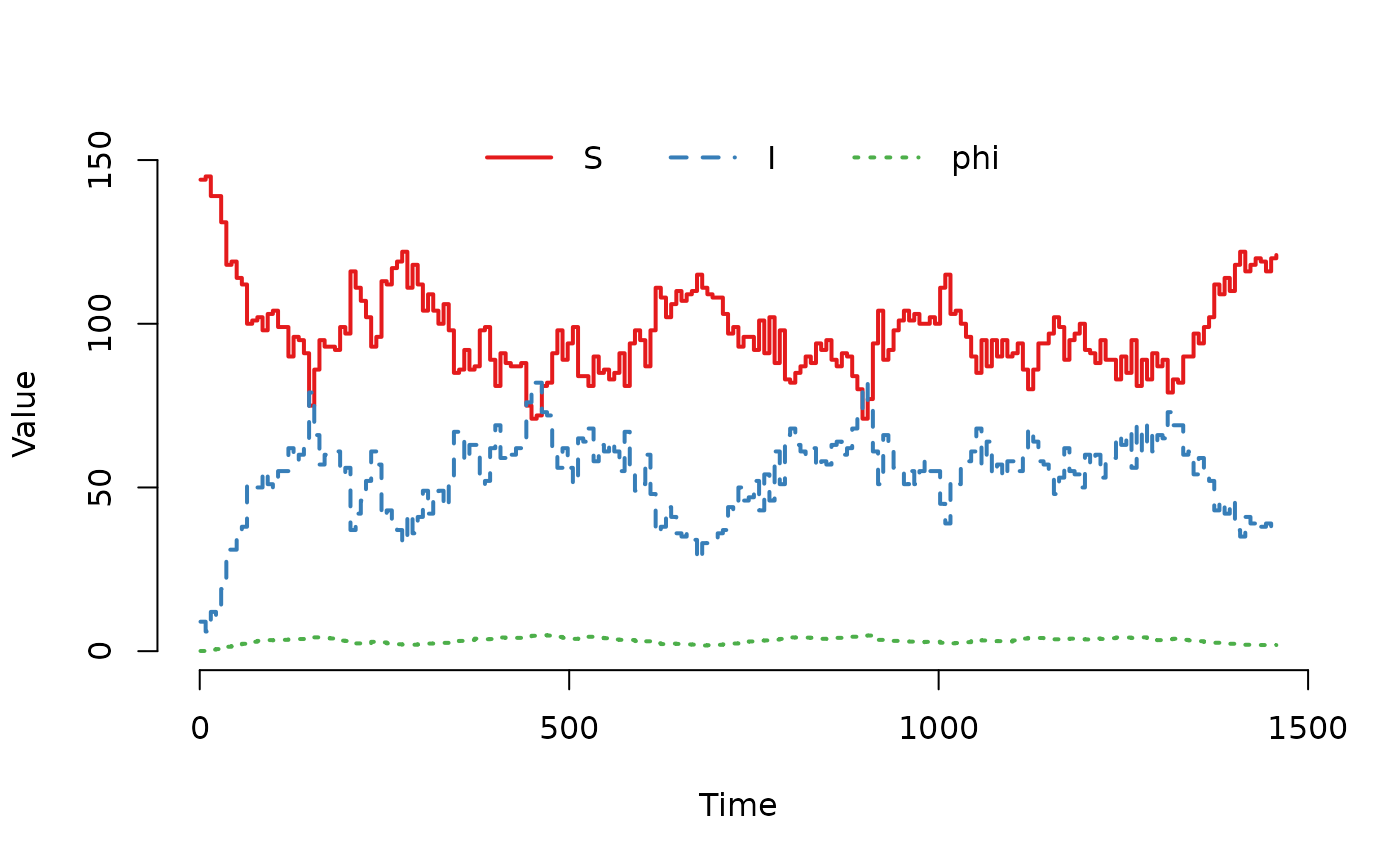

## Plot the trajectory for the first herd.
plot(result, index = 1)
## Summarize the trajectory. The summary includes the number of events
## by event type.
summary(result)
#> Model: SISe
#> Number of nodes: 1600
#>
#> Transitions
#> -----------
#> S -> upsilon*phi*S -> I
#> I -> gamma*I -> S
#>
#> Global data
#> -----------
#> Parameter Value
#> upsilon 0.018
#> gamma 0.100
#> alpha 1.000
#> beta_t1 0.100
#> beta_t2 0.100
#> beta_t3 0.125
#> beta_t4 0.125
#> epsilon 0.000
#>
#> Local data
#> ----------
#> Parameter Value
#> end_t1 91
#> end_t2 182
#> end_t3 273
#> end_t4 365
#>
#> Scheduled events
#> ----------------
#> Exit: 182535
#> Enter: 182685
#> Internal transfer: 0
#> External transfer: 101472
#>
#> Network summary
#> ---------------
#> Min. 1st Qu. Median Mean 3rd Qu. Max.
#> Indegree: 40.0 57.0 62.0 62.1 68.0 90.0
#> Outdegree: 36.0 57.0 62.0 62.1 67.0 89.0
#>
#> Continuous state variables
#> --------------------------
#> Min. 1st Qu. Median Mean 3rd Qu. Max.
#> phi 0.000 0.000 0.000 0.108 0.000 5.548
#>
#> Compartments
#> ------------
#> Min. 1st Qu. Median Mean 3rd Qu. Max.
#> S 18.00 100.00 120.00 122.97 145.00 237.00
#> I 0.00 0.00 0.00 1.57 0.00 100.00
